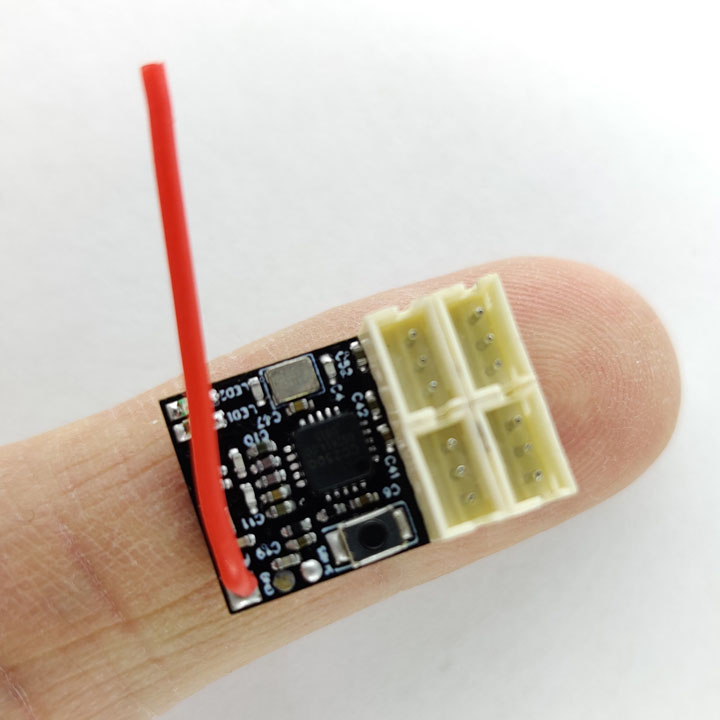

[RX-055] Futaba 2.4GHz T-FHSS Rx Receiver

Details:

Description:

This is the first Futaba T-FHSS compatible micro surface receiver in the world. It offers full 4-channel support in ultra-light weight and micro size. It is ideal for micro racing cars.

Features:

1. Futaba 2.4GHz T-FHSS compatible

2. High performance CPU enhance precision control feeling

3. 4 channel support

4. Micro size (19mm x12mm)

5. Ideal for any micro rc racing chassis

6. Added failsafe function

7. Operating Voltage 3.7V - 8.4V:

8. Weight: 2g

Compatible Transmitters:

Futaba 7PX 4PX 7XC 4GRS 4PV 4PM 4PLS Transmitter Two-way High Speed Receiver

Package Included:

1 x Receiver

 Procedure:

Each transmitter has an individually assigned, unique ID code. In order to start operation, the receiver must be linked with the ID code of the transmitter with which it is being paired. Once the link is made the ID code is stored in the receiver and no further linking is necessary unless the receiver is to be used with another transmitter.

1-Place the transmitter and the receiver close to each other within half (0.5) meter.

2-Place the transmitter into the linking mode and turn on the receiver

3-During countdown, push the receiver tact switch for approximately 2 seconds. The LED will begin to blink red. After the receiver LED switches from blinking red to green - red steady light, If the transmitter and receiver are linked normally, set the power switch to the OFF position and then turn on the PWR ON position. If the receiver LED lights green, linking was succeeded. Actually check servo operation.

Normal mode / High Speed mode:

The " Normal mode " accepts any type of servos or the peripheral. The "High Speed mode" only accepts the digital servos, including BLS series, and most peripheral equipments such as the brushless ESCs. Please pay special attention to the information contained within this manual and transmitters manual in order to have a pleasant running experience.
